DHC Vertical Modular Combination
cartridge dust collector DFT type

Inclined  Modular Installation  Cartridge  Dust Collector

1. Product category series:Inclined Cartridge  Dust Collector

2. Filter consumables used: Filter cartridge

3. Cleaning method: Pulse valve jet compressed air.

4.Structural feature: Meet the packing size of sea freight containers.

5.Industry: Used for collecting and filtering dry dust without oil or water

Inclined  Modular Installation Cartridge Dust Collector

Inclined Modular Installation Cartridge Dust Collector

1.1.Product name: Inclined filter cartridge dust collector (Air volume: 1000-500000 cubic meters/hour)

1.2.Structural feature 1: The filter cartridge adopts a side insertion Inclined installation, a chuck pressure rod type, non screw lifting, and does not need to be screwed into the box.

1.3.Institutional feature 2: Non top mounted insertion of filter cartridges, not occupying top space, suitable for indoor installation.There are multiple forms to choose from for ash hoppers

1.4.Common specifications of filter cartridges: one sizes of chuck square covers: 352 * 660mm.

1.5.Filter cartridge process: The upper and lower covers are welded to the inner frame, resistant to spray pressure of 4-8 kilograms, and fully welded without falling off the bottom.

Inclined Modular Installation Cartridge Dust Collector

1.6. Product process: Modular design and modular installation. The whole machine is spray molded and durable.

1.7. Product features: A mature model that is easy to install and use.

1.8. Application advantages: When encountering ultra-high concentration dust, it is recommended to install a cyclone dust collector for pre-treatment. The cleaning ability of this point is not as good as that of vertically installing filter cartridges.

1.9. Design Services: Free of charge to design product drawings according to the appropriate size of your on-site space,and provide installation guidance and training services

1.10.International transportation: Our product dimensions meet the requirements for shipping containers, making it easy to transport to various parts of the world.

Application Cases

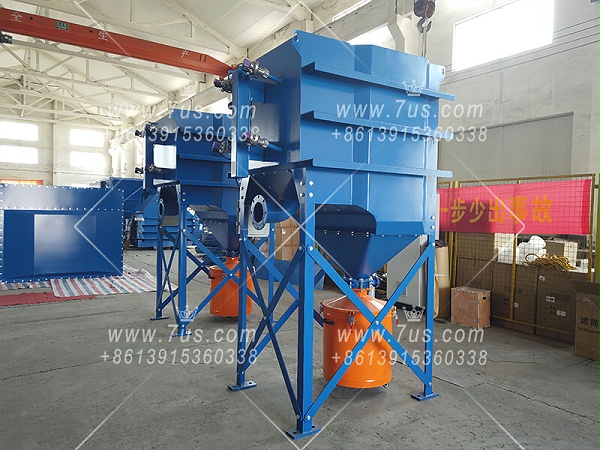

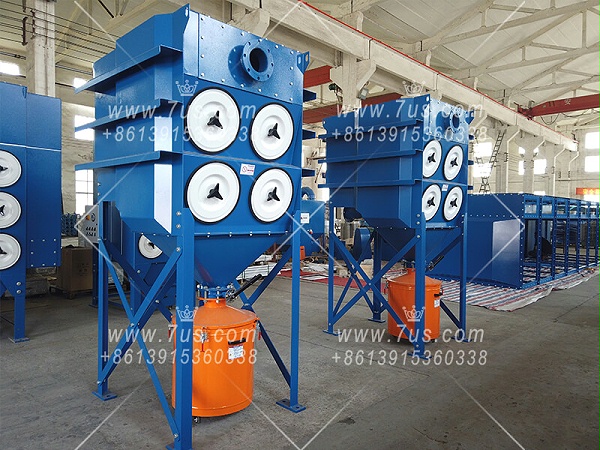

  • DFT2-8 DFT2-8 single machine
  • DFT2-8 DFT2-8 single machine

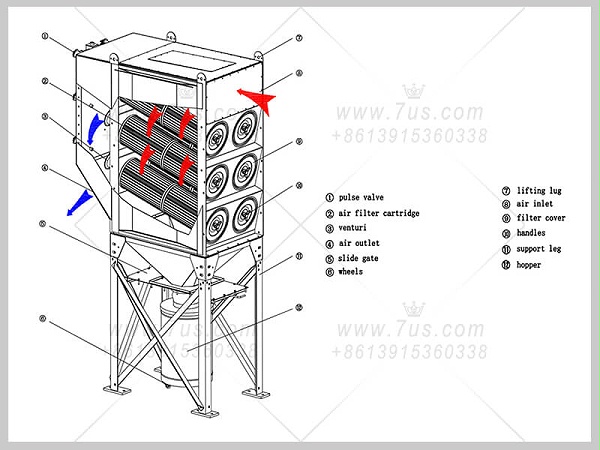

  • Inclined DFT Type cartridge dust collector Drawing design

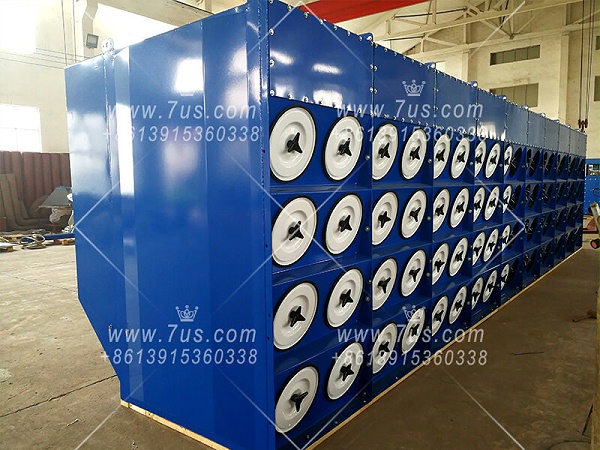

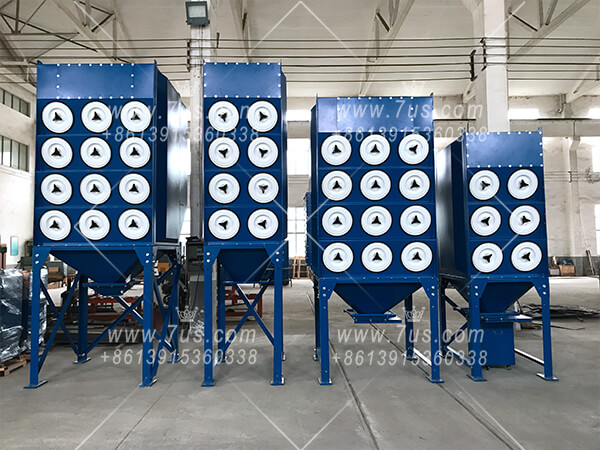

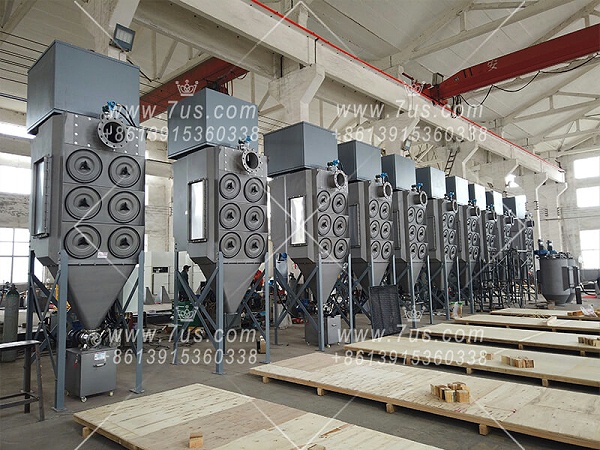

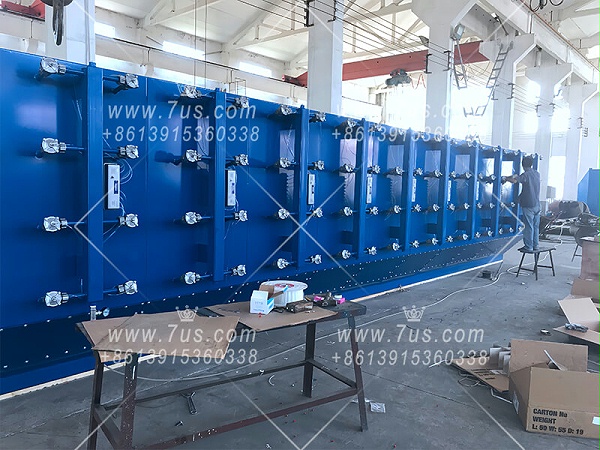

  • Inclined DFT Type cartridge dust collector Assembly inspection after spraying
  • Inclined DFT Type cartridge dust collector Assembly inspection after spraying
  • Inclined DFT Type cartridge dust collector Assembly inspection after spraying

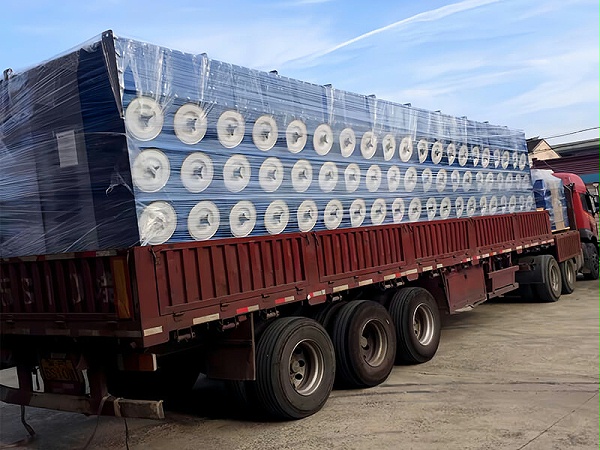

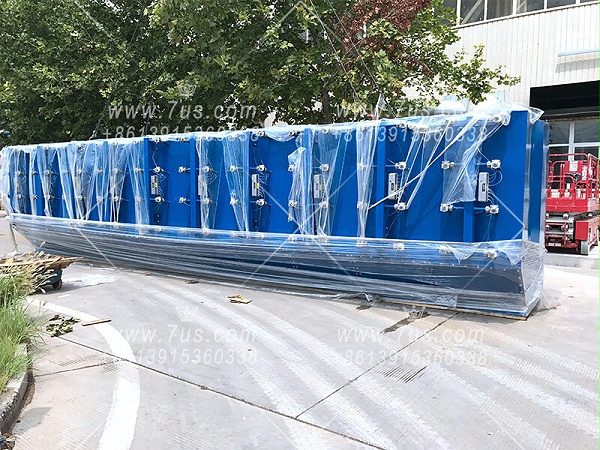

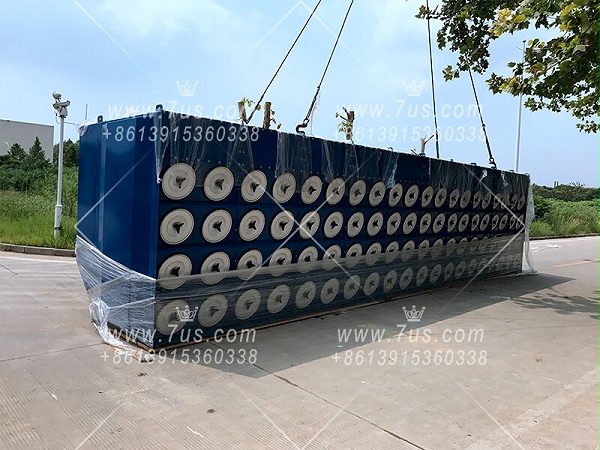

  • Inclined DFT Type cartridge dust collector Shipping and transportation

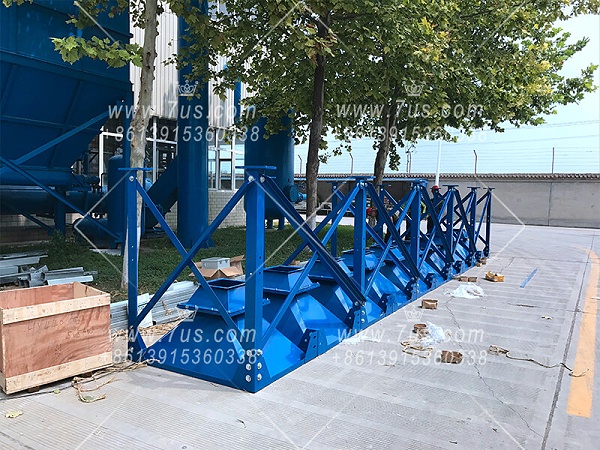

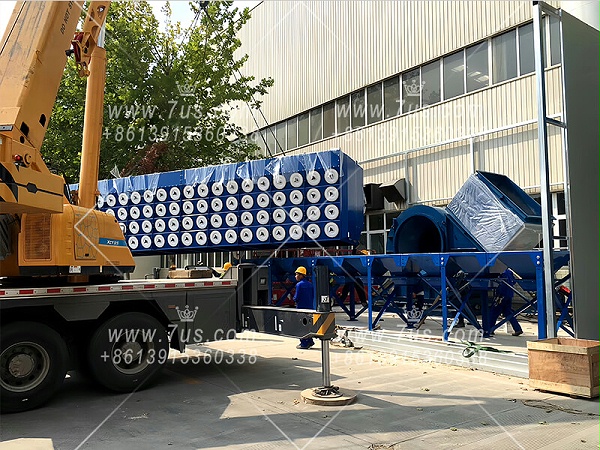

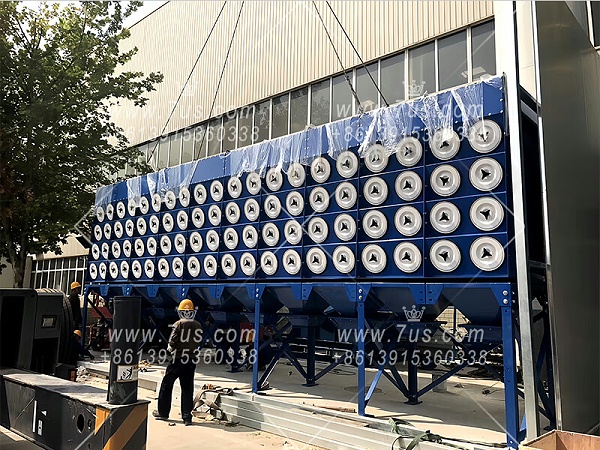

  • Inclined DFT Type cartridge dust collector On site installation of equipment
  • Inclined DFT Type cartridge dust collector On site installation of equipment
  • Inclined DFT Type cartridge dust collector On site installation of equipment
  • Inclined DFT Type cartridge dust collector On site installation of equipment

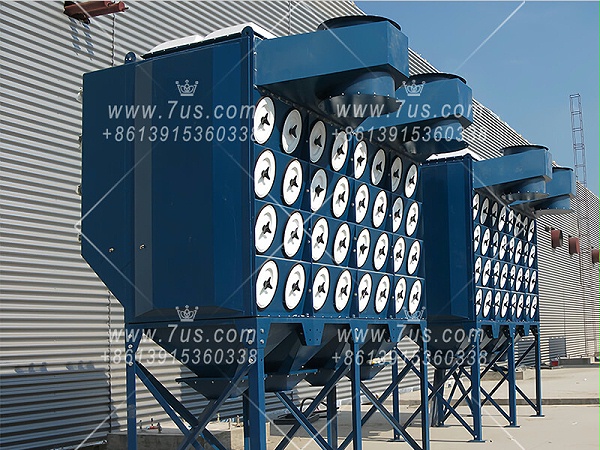

  • Inclined DFT Type cartridge dust collector Complete overall installation

Multiple Forms Of Accessory Combinations

  • cartridge dust collector part

    1.1、Short legged grey bucket
    Drawer type gray box

  • cartridge dust collector part

    1.2、Standard ash hopper
    High legged ash hopper

  • cartridge dust collector part

    1.3、Ash hopper combination
    Multi module type

  • cartridge dust collector part

    1.4、Shipyard type ash hopper
    One bucket for multi-mode use

  • cartridge dust collector part

    1.5、Circular gray bucket
    Support capacity customization

  • cartridge dust collector part

    1.6、Star shaped ash discharge valve
    Optional explosion-proof type

  • cartridge dust collector part

    1.7、Twisted dragon conveyor
    Optional explosion-proof type

  • cartridge dust collector part

    1.8、Gate valve
    Manual

  • cartridge dust collector part

    1.9、Ventilation duct
    On demand customization

  • cartridge dust collector part

    1.10、Pulse jet air system
    Storing compressed air

  • cartridge dust collector part

    1.11、Pulse jet air system
    Storing compressed air

  • cartridge dust collector part

    1.12、Pulse Valve
    Spray compressed air

  • cartridge dust collector part

    1.13、Filter cartridge
    Size:350*660mm

  • cartridge dust collector part

    1.14、Filter cartridge Cage
    DFT tye

  • cartridge dust collector part

    1.15、Venturi
    Steering flow

  • cartridge dust collector part

    1.16、Fan
    Used for air extraction

  • cartridge dust collector part

    1.17、Climbing ladder
    On demand customization

  • cartridge dust collector part

    1.18、Maintenance platform
    On demand customization

Selection Method
Selection table for DHC vertical filter cartridge dust collector

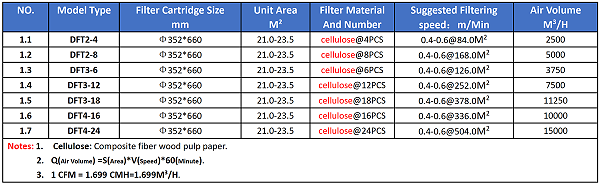

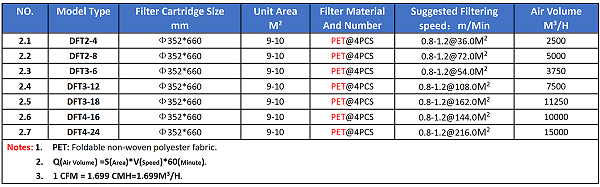

Step1、Select the model type of a separate module:

Model Selection Table

Model Selection Table

Step2、Many Individual Modules Are Combined Into One Unit:

DFT type cartridge filter dust collector

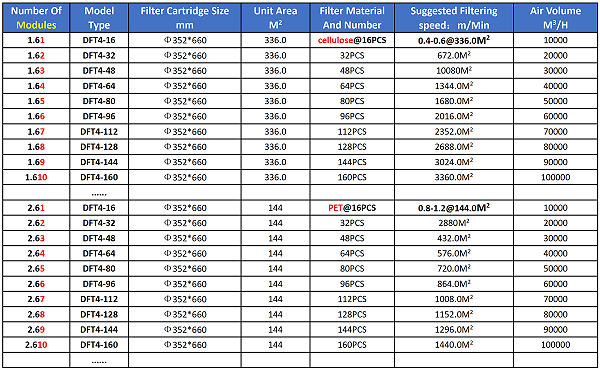

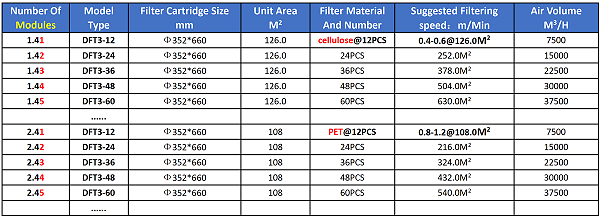

Step3、Selection of air volume for many modular combinations

Model Selection Table

Model Selection Table

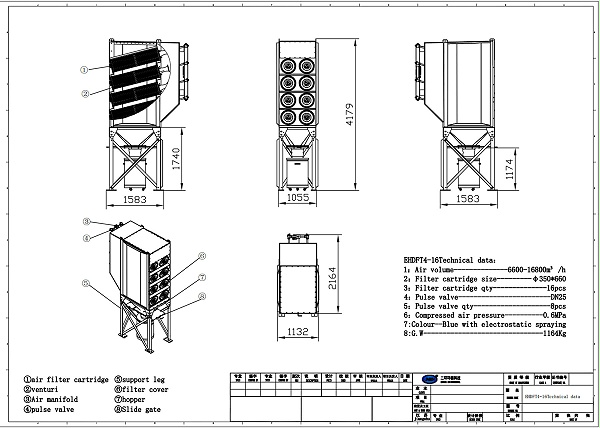

Drawing Examples
Selection Size for cartridge dust collector

Drawing Examples

Drawing Examples
