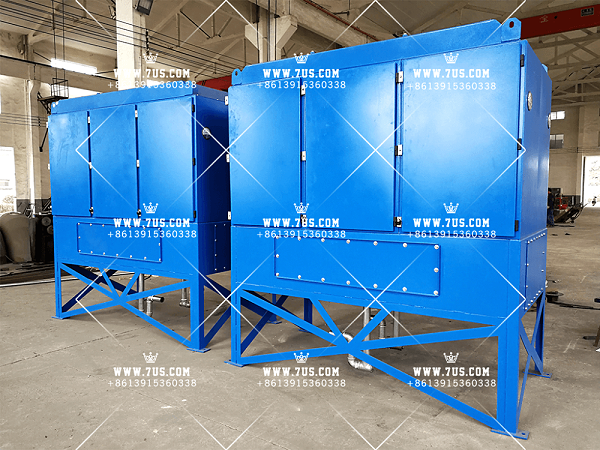

Specially design for oil mist filter and electrostatic oil mist collector,automotive, aerospace and other mist markets.
Easier filter access and drip resistant design.
Designed primarily for wet applications.
Ergonomically designed for operator comfort.
Easy filter change-out quick and efficient.
HEPA & carbon filter can be added.
Application in areas such as machining, food processing as well as the production chain that generates the phenomenon of oil mist flowing in the production process.
Modular design, modular assembly, small floor area
Five in one oil processing solutions
It is in a special air inlet way, which is convenient for the mist sediment and flow

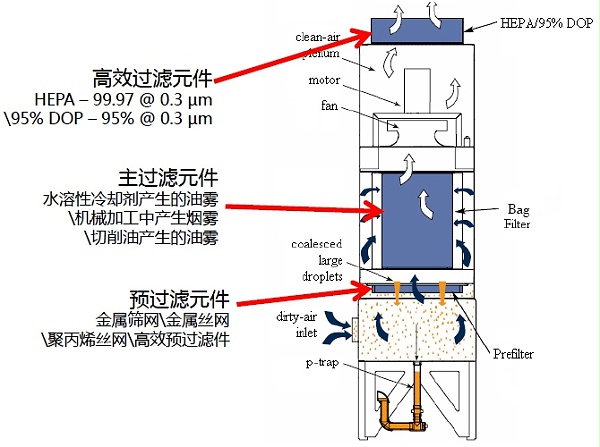

Multi-level mitigate filter cartridge and HEPA pressure
It can save energy, in continuous operation, and with cleaner operation
The replacement of different filter elements is in a easy way, with lower operating costs
Modular design, panned inlet plenum design can be extremely flexible Leak-resistant design
Advanced filter sealing, prevents contaminant by pass
Blue/Black/Grey/Green and more colors can be chosen
Advanced Filter Sealing

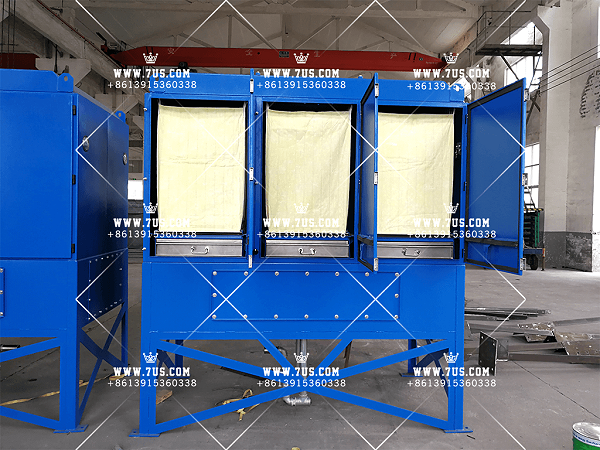

Vee-bag sealing frame: Seals on face of filter, Eliminates tolerance problems on side sealing and easy to replace
10-year warranty

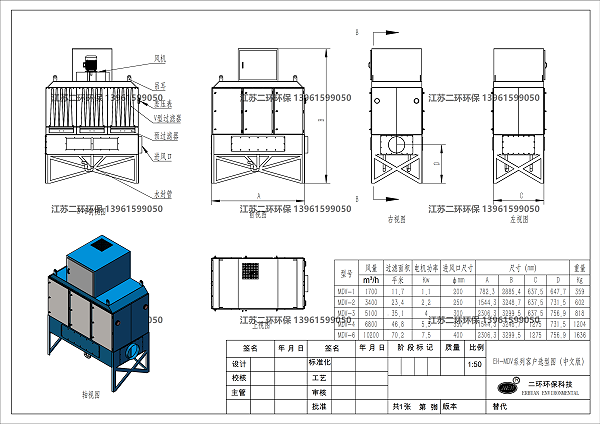

| Item No. | Model | Air volume | size | Bag filter Qty | Pulse valve Qty | Power | N.W |
| M3/H | L*W*H（mm） | Are(M2) | pcs | KW | T | ||
| 1 | MDV-1 | 1700 | 782.3*2885.4*637.5 | 11.7 |
|
1.1KW | 0.359 |
| 2 | MDV-2 | 3400 | 1554.3*3248.7*637.5 | 23.4 |
|
2.2KW | 0.602 |
| 3 | EHI-3 | 5100 | 2306.3*3299.5*637.5 | 35.1 |
|
4KW | 0.818 |
| 4 | MDV-4 | 6800 | 1544.3*3248.7*1275 | 46.8 |
|
5.5KW | 1.204 |
| 5 | MDV-6 | 10200 | 2306.3*3299.5*1275 | 70.2 |
|
7.5KW | 1.636 |
laser cutting
CNC bending
Assembly and verification
Plastic spraying of parts
Building block assembly1
Building block assembly2
Modular assembly
Product delivery
Container shipping
Convenient installation
Installation completed
Foreign technical guidance
Application cases
Application cases
Application cases
Application cases
Application cases
Application cases
Most of our cartridge dust collector are modular design, block assembly, so we will arrange our installation team to help you overseas, the flight air ticket, accommodation and labor cost should be on customer side.
If you have cartridge dust collector installation experience, there is no need to spend such cost, just as per our operation & installation manual, if you have any questions, you can ask our team by wechat, facebook or whatsapp, we can do video service.
|
Q：What is the price?
A：The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos |
Q：What payment methods your company accept?
A： We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc. |
|
Q：How long is the warranty time for your products?
A： Our officially promised warranty time is one whole year after delivery at best. |
Q：I haven't done business with your factory before,how can i trust your company?
A： We are the golden supplier on Alibaba for 2 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough. |
|
Q：What's the delivery time of your company?
A：Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit. |
Q：Do you give any discount ?
A：We will surely try my best to help you get those by the best price and good service at the same time. |
|
Q：I would like to ask you if it's possible to have my logo on the dust collector machine
A：We hope you know that our company Erhuan supports customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed. |
|
Any questions during the using, please call us at+86-510-87692608
Warranty 1 year from the shipping date, and we can do all life after service for the cartridge dust collector.
Within warranty, our service team will reply you within 2 hours and help you solve the problem within 24 hours
We can do wechat/facebook/whatsapp video remote guidance if any urgent problems
Out of the warranty, we still provide after service, if you need to buy replacement, we only Quote you the raw material cost.
we firmly believe that the best for customer is also the best of our friends! Let’s do our best to protect clean air of the earth.
No matter we can do business this time, we are pleased to be your friend from now, if you need help in China, maybe we can do some help!
Drawing Download:
1、EHDFT2-8 2、 EHDFT3-6D 3、EHDFT3-12 4、EHDFT3-18 5、EHDFT4-16 6、EHDFT4-24
