Industrial dust collector since 1994

DHC Vertical Modular Combination
Vertical Filter Cartridge Dust Collector

1、 Especially designed for high concentration and fine dust collector.

2、Can be installed inside, the size can be customize.

3、 Exhaust gas emission less than 1mg/m3 with HEPA filter.

4、The usage of filter material is 25% higher than the horizontal installation. .If the dust contains VOCS smell, it can be added the third stage carbon active filter.

5、Humanized design:with Wifi model: remote control display, LAN or Internet control, phone APP control, you can track monitor the dust collector at any time.

Product Brief introuction

Product-Brief-introuction

Standard modular design, small floor space,Eccentric cam fixed filter cartridge.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Pleated filter cartridge is selected for filtration, which has small volume but large filtering area.

HEPA filter and activated carbon combination filtration can be installed, and the purification efficiency is more than 99%.

Almost meet all kinds of normal temperature, no water, no oil dry dust smoke.

Product Brief introuction

Product-Brief-introuction

Standard modular design, small floor space,Eccentric cam fixed filter cartridge.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Pleated filter cartridge is selected for filtration, which has small volume but large filtering area.

HEPA filter and activated carbon combination filtration can be installed, and the purification efficiency is more than 99%.

Almost meet all kinds of normal temperature, no water, no oil dry dust smoke.

Product Brief introuction

Product-Brief-introuction

Standard modular design, small floor space,Eccentric cam fixed filter cartridge.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Pleated filter cartridge is selected for filtration, which has small volume but large filtering area.

HEPA filter and activated carbon combination filtration can be installed, and the purification efficiency is more than 99%.

Almost meet all kinds of normal temperature, no water, no oil dry dust smoke.

Product Brief introuction

Description
      Vertical cartridge dust collector from the production of Erhuan Filtration is a dry type, vertical installation  of filter cartridge dust filtration device with automatic regeneration of the filtering medium by compressed air. Regeneration of the filter medium is performed cyclically at set time intervals with the possibility of control according to the current pressure loss. The suction power is determined by the fan used according to the type of material and the required load on the filter surface. The fan is not part of the filter unit. Recommended loads on filtering medium for each type of dust are listed below.
      The filtration equipment is made in an outdoor version without the necessity of roofing. The filtration equipment achieves high filtration efficiency - 99%, after add HEPA filter can 99.995%,so it is possible to return the filtered air mass back to the production hall area. The ratio of air return to the hall space and outdoor environment is determined by the technology designer according to the characteristics of the extracted material and the air conditions of the production object.
     You can choose the mode of filter cartridge primary filtration ,or filter cartridge add HEPA secondary filtration ,or filter cartridge add HEPA and add activated carbon filter tertiary filtration's type mode.

Use of cartridge filter dust collector
    The filtering device is designed for dust separation from exhausted air mass.
    The filtration system is always composed of a specific filter unit and an associated exhaust fan. The combination of the filter unit and exhaust fans differs for different types of dust and according to the required filter surface. The load on the filter surface varies for the dust types due to: fraction size, density, area, tack, grease and other factors that we transfer to the common unit in industrial filtration, and this is the load on the filter surface. The purpose is to design a filter + fan combination for a specific type of dust extraction and process so that the filtering device achieves continuous extraction performance and filtered air purity over the declared lifetime of the filter medium.
    The incorrect ratio of the used filtering equipment to the fan results in unstable operating conditions with a characteristic rapid increase of the pressure loss of the filter medium and the degradation of the suction power. Available filter variants: With a discharge to a 55-litre bucket, to a 200-litre container, to the Big-Bag.
     All types of filters are made for non-explosive dust as well as ATEX.

Working conditions
    The filtration device is designed for filtration of air mass with temperature -30 ° C to + 80 ° C in the version without thermal insulation.
    The filter is not designed for explosive dust (it can be extended with an option).
    The suction power is determined by the load factor of the filtering surface for the individual type of dust extracted.

Technica data and Models

Type 1: Cartridge filter

First stage filter

Item No. Model Air volume size Cartridge filter Qty Pulse valve Qty Power N.W
M3/H L*W*H(mm) pcs pcs KW T
1 DHC4-4 4000 1020*1000*3813 4 4@DN*25   0.624
2 DHC6-6 6000 1020*1426*3814 6 2@DN*40   0.786
3 DHC8-8 8000 1100*1825*4359 8 2@DN*40   1.070
4 DHC10-10 10000 1100*2465*5060 10 2@DN*50   1.419
Type 2: Cartrige filter add HEPA

Two stage filter

Item No. Model Air volume size Cartridge filter Qty Pulse valve Qty Power N.W
M3/H L*W*H(mm) pcs pcs KW T
1 DHC6-6-2H 6000 1020*1426*4414 6 2@DN*40  > 0.968
2 DHC8-8-3H 8000 1100*1825*5000 8 2@DN*40  > 1.215
3 DHC10-10-3H 10000 1100*2465*5660 10 2@DN*50  > 1.676
Type 3: Filter cartrige add HEPA add Carbon active

Three stage filter

Item No. Model Air volume size Cartridge filter Qty Pulse valve Qty Power N.W
M3/H L*W*H(mm) pcs pcs KW T
1 DHC6-6-2HC 6000 1020*1426*5014 6 2@DN*40  > 1.150
2 DHC8-8-3HC 8000 1100*1825*5640 8 2@DN*40  > 1.360
3 DHC10-10-3HC 10000 1100*2465*6260 10 2@DN*50  > 1.933
Installtion many for mutipile models, eg

Installtion many for mutipile models

For example:1、If you need 40000m3/h dust collector, you can choose 4 models DHC10-10, or you can choose 10 models DHC4-4.2、 If you choose a single module of DHC8-8 with rated air volume, multiple modules of this model can be assembled to form corresponding large air volume dust collector.

Item No. Model Air volume size Cartridge filter Qty Pulse valve Qty N.W
M3/H L*W*H(mm) pcs pcs T
1 DHC8-8 8000 1100*1825*4359 8 2@DN*40 1.070
2 DHC8-16 16000 2200*1825*4359 16 4@DN*40 1.744
3 DHC8-24 24000 3300*1825*4359 24 6@DN*40 2.538
4 DHC8-32 32000 4400*1825*4359 32 8@DN*40 3.212
5 DHC8-40 40000 5500*1825*4359 40 10@DN*40 4.006
6 DHC8-48 48000 6600*1825*4359 48 12@DN*40 4.680
7 DHC8-56 56000 7700*1825*4359 56 14@DN*40 5.474
8 DHC8-64 64000 8800*1825*4359 64 16@DN*40 6.148
9 DHC8-72 72000 9900*1825*4359 72 18@DN*40 6.942
10 DHC8-80 80000 11000*1825*4359 80 20@DN*40 7.616

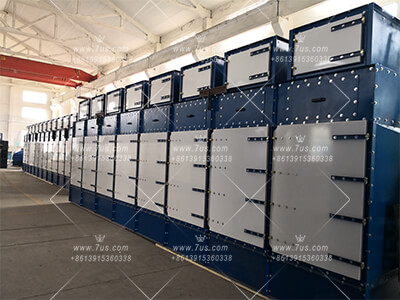

Manufacturing And Installation Capacity Demonstration

  • cartridge dust collector

    laser cutting

  • cartridge dust collector

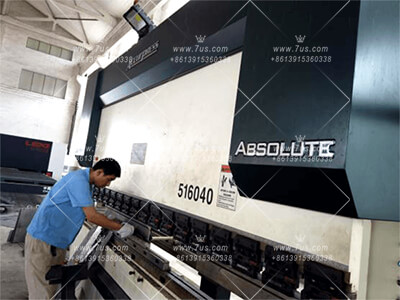

    CNC bending

  • cartridge dust collector

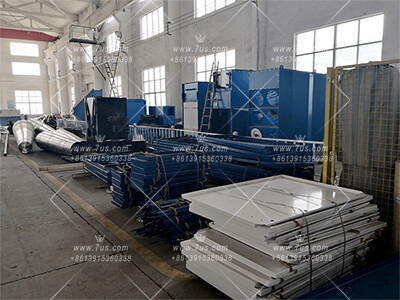

    Plastic spraying of parts

  • cartridge dust collector

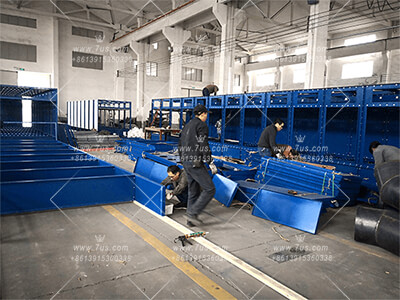

    Building block assembly1

  • cartridge dust collector

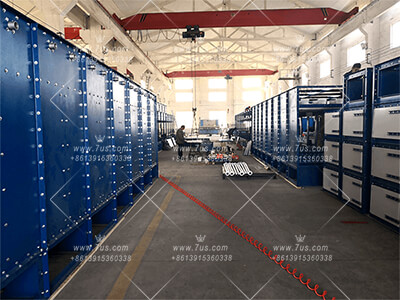

    Building block assembly2

  • cartridge dust collector

    Building block assembly3

  • cartridge dust collector

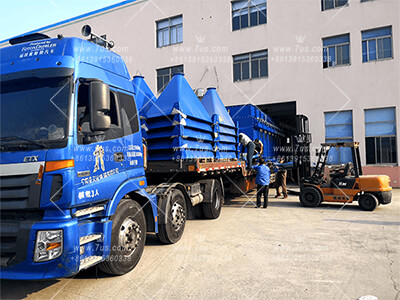

    Product delivery

  • cartridge dust collector

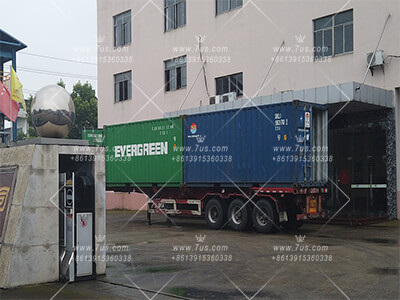

    Container shipping

  • cartridge dust collector

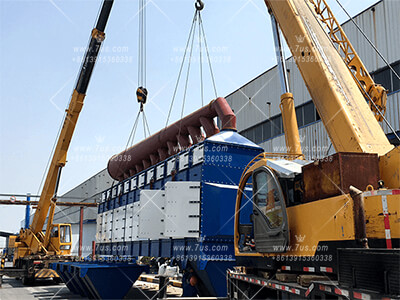

    Convenient installation1

  • cartridge dust collector

    Convenient installation2

  • cartridge dust collector

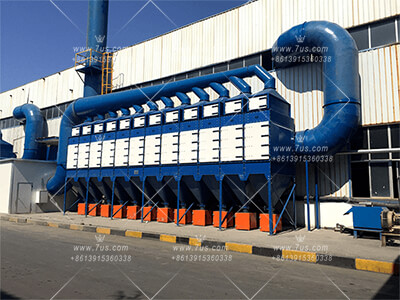

    Installation completed

  • cartridge dust collector

    Foreign technical guidance

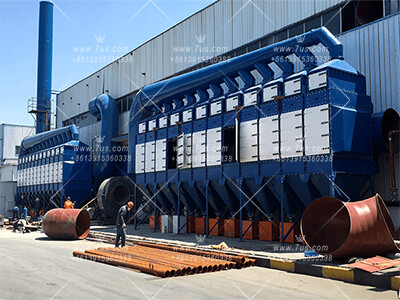

Application cases

  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
left right

Shipping

All L.C .L overseas shipping are packed in pallet/plywood box to avoid any breakage during shipping;All F.C.L overseas shipping are packed in pallet, then loaded to the container.If you have other packing or shipping request, please contact JNEH before order, we will try our best to help for you.
  • Shipping
  • Shipping2
  • Shipping3
  • Shipping4

Installation

Installation1

Most of our cartridge dust collector are modular design, block assembly, so we will arrange our installation team to help you overseas, the flight air ticket, accommodation and labor cost should be on customer side.

Installation2

If you have cartridge dust collector installation experience, there is no need to spend such cost, just as per our operation & installation manual, if you have any questions, you can ask our team by wechat, facebook or whatsapp, we can do video service.

FAQ & after sales service

FAQ
Q:What is the price?

A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos

Q:What payment methods your company accept?

A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

Q:I haven't done business with your factory before,how can i trust your company?

A: We are the golden supplier on Made-in -China for 5 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough.

Q:What's the delivery time of your company?

A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.

Q:Do you give any discount ?

A:We will surely try my best to help you get those by the best price and good service at the same time.

Q:I would like to ask you if it's possible to have my logo on the dust collector machine

A:We hope you know that our company Erhuan supports customized logo service.

After sales service

We can go to your country for installation guidance.

Any questions during the using, please call us at+8613915360338

Warranty 1 year from the shipping date, and we can do all life after service for the cartridge dust collector.

Within warranty, our service team will reply you within 2 hours and help you solve the problem within 24 hours

We can do wechat/facebook/whatsapp video remote guidance if any urgent problems

Out of the warranty, we still provide after service, if you need to buy replacement, we only Quote you the raw material cost.

we firmly believe that the best for customer is also the best of our friends! Let’s do our best to protect clean air of the earth.
