Industrial dust collector since 1994

Wood Dust Collector

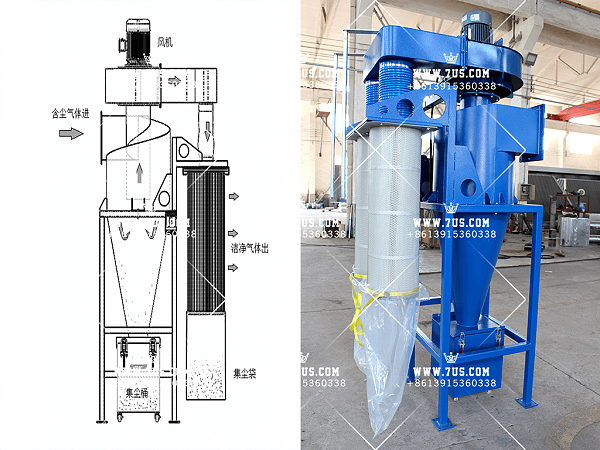

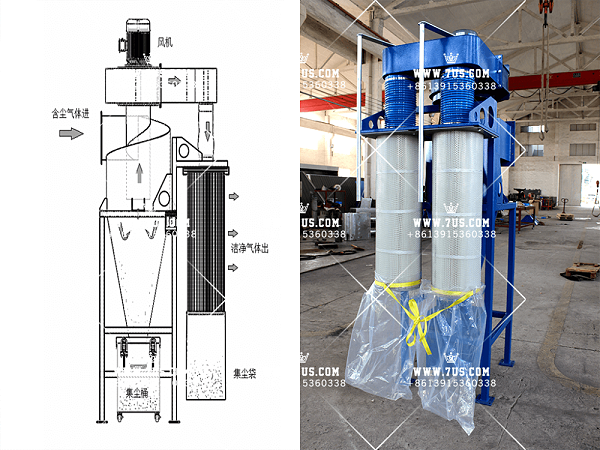

Wood dust collector

1、mainly used for woodworking dust collector.

2、simple design structure, easy for installation and maintenance.

3、3 stages filter: cyclone for big woodworking chips+cartridge dust colletor for fine woodworking dust+filter bags for collect all the chips.

4、2-stage cyclone dust collector can collect dust from multiple machines running simultaneously.

5、Domestic famous engines, 3-5mm carbon steel, high economic benefits, can collect 75% wood chips.

6、stock in warehouse,fat deliver time and Lightning quotation.

Product Brief introuction

Wood dust collector

Material: Carbon Steel Q235 or SUS 304 can be choose.

Module design, Big processing air capability, stable performance, easy operation.

Remote control switch.

2.2KW 380Volts 50Hz.

There is no transmission mechanism and moving parts, maintenance and repair.

It can be added to the smart electric cabinet (touch screen, PLC programming control, frequency converter, compressed air detector, pipe pressure instrument, Internet service, dust concentration detector).

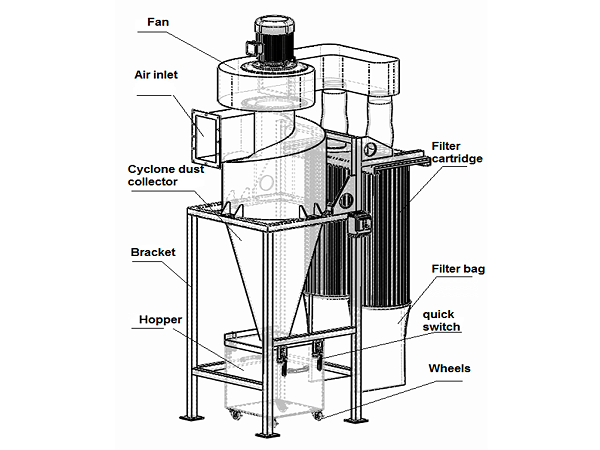

structure drawing

Wood dust collector

Product Options
  • Wood dust collector

    Wood dust collector

  • Wood dust collector

    Wood dust collector

  • 202010141750230Wood dust collector01554/resource/images/23345455d88c4e8fa14ea81634646b66_67.png

    Wood dust collector

  • Wood dust collector

    Wood dust collector

  • Cyclone dust collector

    Wood dust collector

  • Cyclone dust collector

    Wood dust collector

Technica data and Models

Item No. Model Air volume size Motor Cartridge  Weight
M3/H L*W*H(mm) HP filtration Kg
1 MGXF2000 2000 1243*780*2744 3 2@99% 350
2 MGXF4000 4000 1243*780*2744 7.5/10 2@99% 350

Features

The most cost-effective way for first filter or big particle dust collector.

The size is suitable for all kinds of container transportation.

Simple installation and quick assembly.

Material is selected for different dirty dust,insulation or anti-explosion can be chosen.

Almost meet all kinds of plants, normal temperature, no water, no oil dry dust smoke.

Application: tobacco, laser cutting, welding, grinding, polishing, grinding, sand blasting, shot blasting, coating powder spraying, grain, pharmaceutical, chemical, battery industry, food production and other dust collection.

We are a manufacturing factory

  • laser-cutting

    laser cutting

  • CNC-bending

    CNC bending

  • cartridge dust collector

    Assembly and verification

  • cartridge dust collector

    Plastic spraying of parts

  • cartridge dust collector

    Building block assembly1

  • cartridge dust collector

    Building block assembly2

  • cartridge dust collector

    Modular assembly

  • cartridge dust collector

    Product delivery

  • Container-shipping

    Container shipping

  • cartridge dust collector

    Convenient installation

  • cartridge dust collector

    Installation completed

  • Foreign-technical-guidance

    Foreign technical guidance

Application cases

  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases
  • Application casesApplication cases

Shipping

All L.C .L overseas shipping are packed in pallet/plywood box to avoid any breakage during shipping;All F.C.L overseas shipping are packed in pallet, then loaded to the container.If you have other packing or shipping request, please contact JNEH before order, we will try our best to help for you.
  • Shipping
  • Shipping2
  • Shipping3
  • Shipping4

Installation

Installation1

Most of our cartridge dust collector are modular design, block assembly, so we will arrange our installation team to help you overseas, the flight air ticket, accommodation and labor cost should be on customer side.

Installation2

If you have cartridge dust collector installation experience, there is no need to spend such cost, just as per our operation & installation manual, if you have any questions, you can ask our team by wechat, facebook or whatsapp, we can do video service.

FAQ & after sales service

FAQ
Q:What is the price?

A:The price is based on your request technical data, such as the air volume, application, configuration etc, different model has different price, so if you need the price, please send me your detail technical data or photos

Q:What payment methods your company accept?

A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.

Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

Q:I haven't done business with your factory before,how can i trust your company?

A: We are the golden supplier on Alibaba for 2 years, and we can get a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate etc. We can also accept Trade Assurance payment, i hope this will be persuasive enough.

Q:What's the delivery time of your company?

A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time is within 6-8 weeks after deosit.

Q:Do you give any discount ?

A:We will surely try my best to help you get those by the best price and good service at the same time.

Q:I would like to ask you if it's possible to have my logo on the dust collector machine

A:We hope you know that our company Erhuan supports customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.

after sales service

Any questions during the using, please call us at+86-510-87692608

Warranty 1 year from the shipping date, and we can do all life after service for the cartridge dust collector.

Within warranty, our service team will reply you within 2 hours and help you solve the problem within 24 hours

We can do wechat/facebook/whatsapp video remote guidance if any urgent problems

Out of the warranty, we still provide after service, if you need to buy replacement, we only Quote you the raw material cost.

we firmly believe that the best for customer is also the best of our friends! Let’s do our best to protect clean air of the earth.

No matter we can do business this time, we are pleased to be your friend from now, if you need help in China, maybe we can do some help!
