1.1  The bottom of the tower is equipped with a slanted plate sedimentation tank, which enhances the ability to remove mud sedimentation. Added activated carbon filler layer to adsorb VOCS, air volume range： 1000-100000CMH

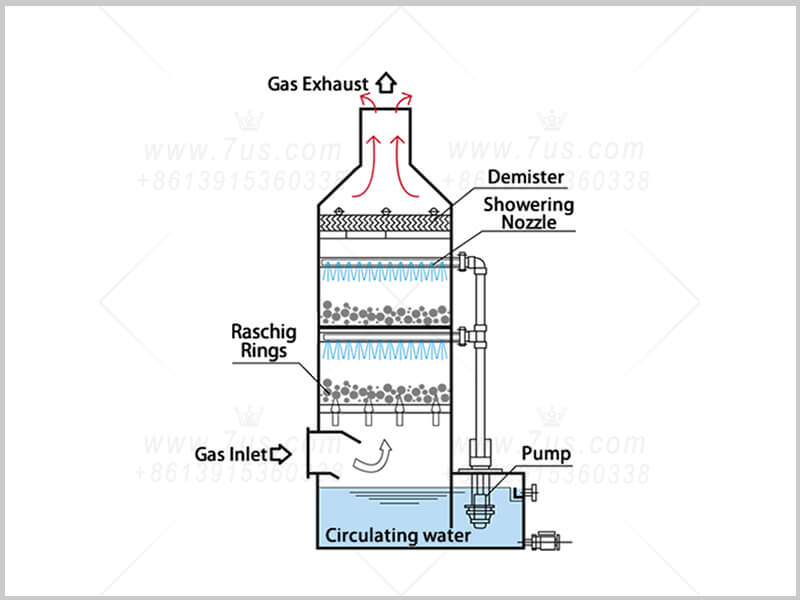

1.2  The bottom of the tower is a water tank, the middle is a packing layer, and a spray device is installed on top of the packing. The upper part is a dewatering layer.

1.3 The gas rises and enters the defogging section, where it drips through the upper cyclone defogger. As the core of gas-liquid mass transfer is a corrugated plate.

1.4 The airflow undergoes a maze like inertial collision here, causing water droplets to continuously gather, remove them, and discharge clean airflow into the atmosphere.

1.5 Washing solution can be water or chemical solvents that can dissolve and absorb each other based on the characteristics of the gas.

1.6 Typically, acidic gas washing solutions are agents of NaOH, which undergo acid-base neutralization chemical reactions to produce salts and water.

1.7 The filler is Ceramic or stainless steel or plastic multi sided hollow sphere or Ball ring. According to the needs, the packing layer can be set in multiple stages, and the multi-level spraying is a model that integrates the physical interception and chemical neutralization reaction of the packing.

1.8 Using automatic instruments to monitor the pH value of the washing solution, when pH<7 is found, NaOH agent is automatically added to maintain the washing solution between 7

1.9 Design service: Based on the size of your on-site space, design product drawings for free, and provide installation guidance and training services.

1.10 International transportation: Our product dimensions meet the requirements of container transportation, making it easy to transport to various parts of the world.
