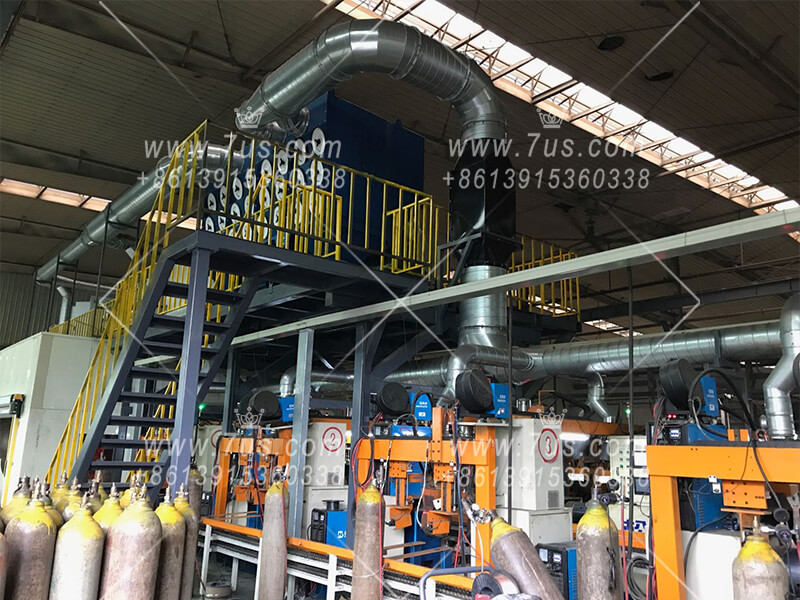

1.1.Product name: Welding fume purifier-Multi Position hander Welding-Centralized Dust Collector, air volume10000-200000 cubic meters/hour.

1.2. Suitable for centralized collection and purification of smoke, dust, and exhaust gases generated by multiple workers during manual welding in large workshops.

1.3.The welding parts are relatively large and occupy a large space, so there is no need to build a complete workshop to collect welding smoke and exhaust gas, and cover the house.

1.4. The welding points are not fixed, relatively scattered, and cannot be concentrated. Workers need to move a long distance to reach the welding points of the sheet metal.

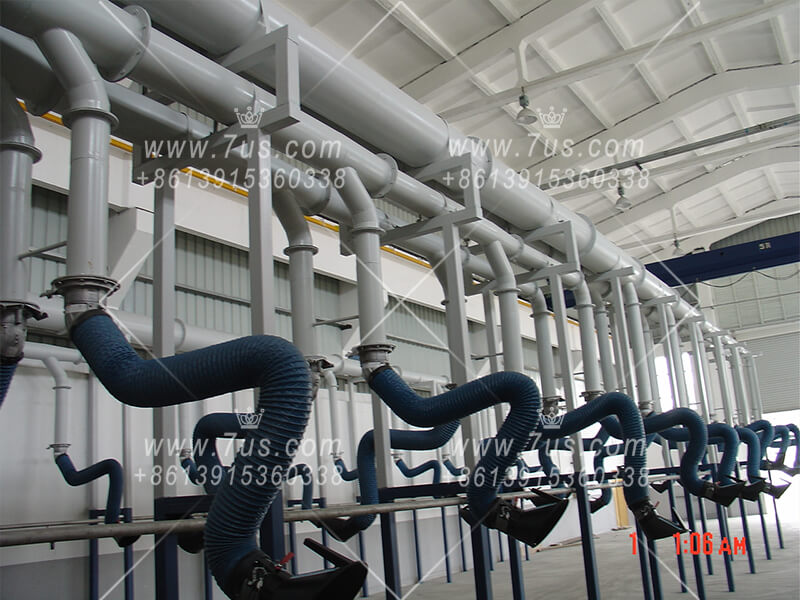

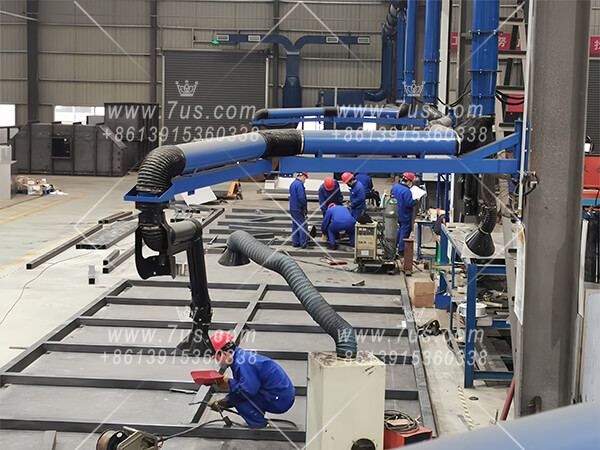

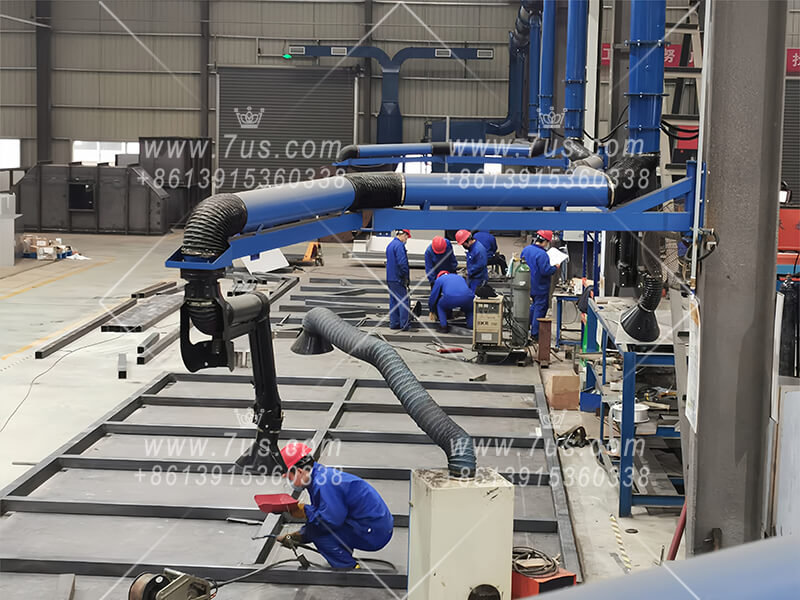

1.5. When each worker is welding, there is a retractable and rotating suction arm that moves together. A suction hood is installed on the suction arm, which is always above the welding point.

1.6.The length of the suction arm is usually 4 meters, 5 meters, or even longer. With the installation of a rotating device, the suction arm can rotate 360 degrees.

1.7. Each suction arm is installed on the main suction pipeline through a valve, and an air volume control valve is installed at the front end of the valve to adjust the size of the air volume.

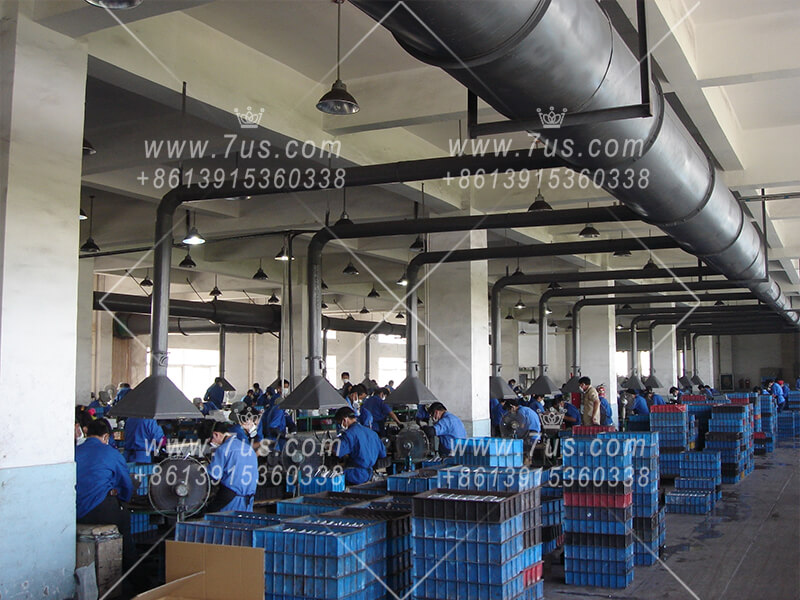

1.8. The main pipeline structure is located on the beam or support column, and the diameter of the pipeline is controlled from far to near to adjust the air volume and wind speed.

1.9. If there is oil on the profiles welded by workers, when using a dry filter cartridge dust collector, lime powder needs to be sprayed to neutralize the oil stains and prevent clogging of the filter material. At this point, wet water dust collectors can also be considered.
