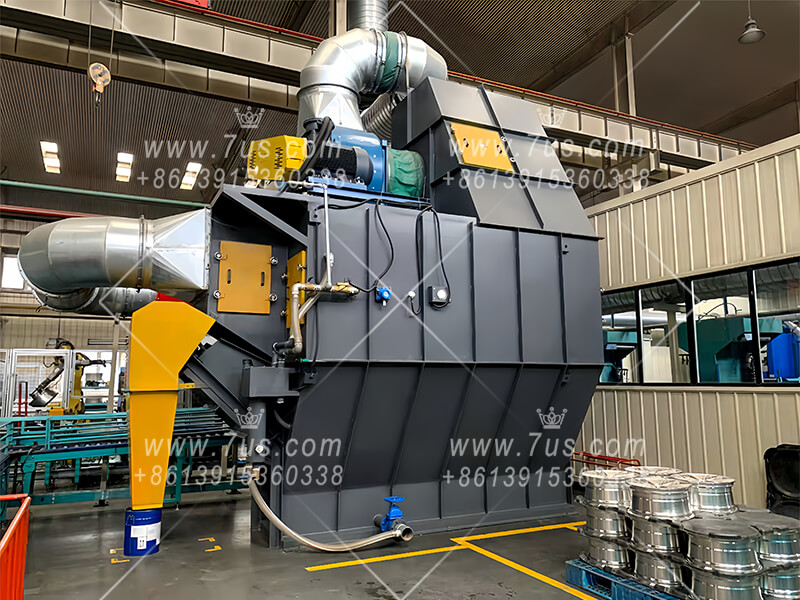

1.1 Product name: Wet explosion-proof dust collector Air volume range: 1000-10000 CMH.

1.2  Mainly solves the flammable and explosive dust generated during the production process of aluminum, magnesium, and titanium metals.

1.3 The special "S" - shaped Venturi airflow channel, when the fan draws air, triggers a large number of water splashes, creating waves and washing dust.

1.4 Usually, no filter material is needed. As long as water is used as the washing solution, dust settling can be effectively eliminated.Of course, a combination of wet, bag filter, and HEPA filter can also be used to achieve zero indoor emissions.

1.5 The venturi throat can be installed at the air inlet of the dust remover, and the high-pressure water pump can be used to spray dust to improve the purification efficiency.

1.6 Water is recycled, and when there is evaporation consumption, the liquid level gauge detects a water shortage signal and opens the water replenisher to automatically replenish water.

1.7 The removal of sludge and metal slag that settles at the bottom of the water tank is achieved by manual removal of type B sludge, automatic removal of sludge by chain scraper of type C sludge, and flushing of slag by cone bucket of type D.

1.8 Aluminum magnesium titanium metal will react chemically with water to produce hydrogen gas. There is a hydrogen release valve on the top of the equipment, which can release hydrogen gas at any time and eliminate explosion hazards.

1.9. Design Services: Free of charge to design product drawings according to the appropriate size of your on-site space，and provide installation guidance and training services
